TPS54541DPRR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS54541DPRR
Datasheet:
Description:

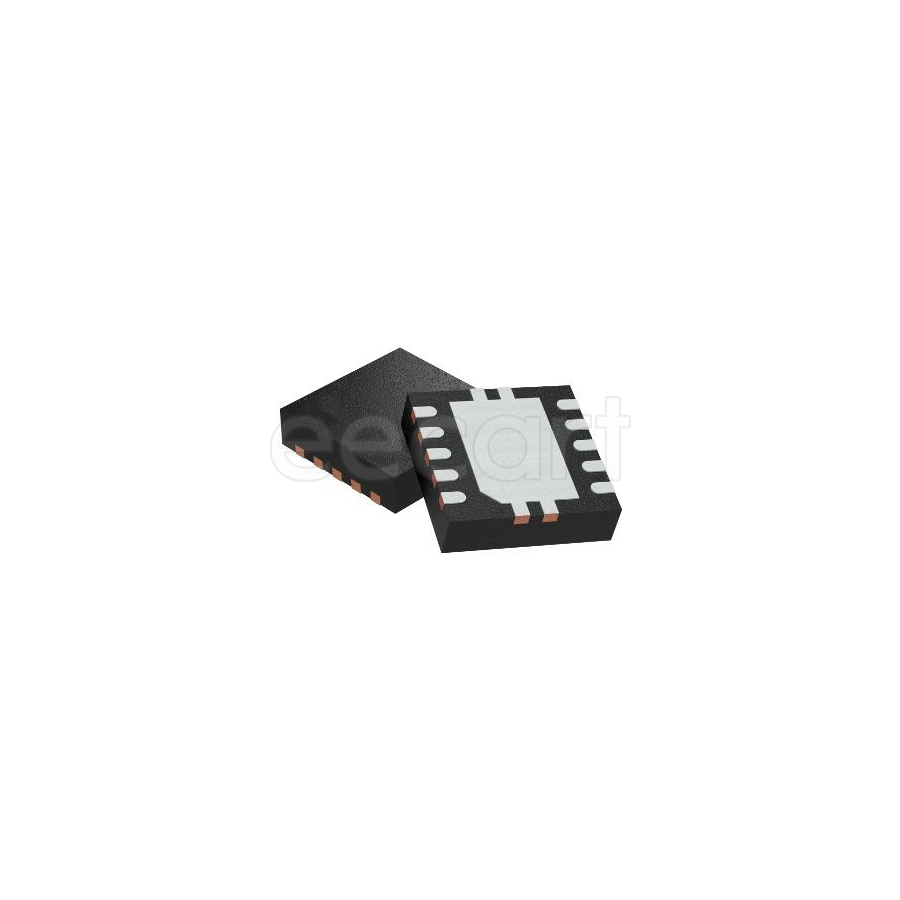

Voltage Regulators - Switching WSON-10 SMD/SMT Buck, Split Rail Adjustable 41 V
| Parameter | Value |
|---|---|
| Number of Pins | 10 |
| Max Input Voltage | 42 V |
| Max Operating Temperature | 85 °C |
| Max Output Current | 5 A |
| Max Output Voltage | 41 V |
| Min Input Voltage | 4.5 V |
| Min Operating Temperature | -40 °C |
| Min Output Voltage | 800 mV |
| Number of Outputs | 1 |
| Operating Supply Voltage | 42 V |
| Output Configuration | Positive |
| Output Current | 5 A |
| Output Type | Adjustable |
| Output Voltage | 41 V |
| Quiescent Current | 152 µA |
| Switching Frequency | 2.5 MHz |
| Synchronous Rectifier | No |
| Height | 800 µm |
| Length | 4 mm |
| Thickness | 0.75 mm |
| Width | 4 mm |
| Lifecycle Status | Active |
| Radiation Hardening | No |
| Packaging | Reel |
| Lead Free | Lead Free |
| Function | Step-Down |
| Topology | Buck, Split Rail |
| RoHS | Compliant |
Stock: 1
Distributors
pcbx
pcbxUnit Price$2.52717
Ext.Price$2.52717
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.52717 | $2.52717 |
| 10 | $2.46305 | $24.63050 |
| 25 | $2.43437 | $60.85925 |
| 50 | $2.40603 | $120.30150 |
| 100 | $2.37798 | $237.79800 |
